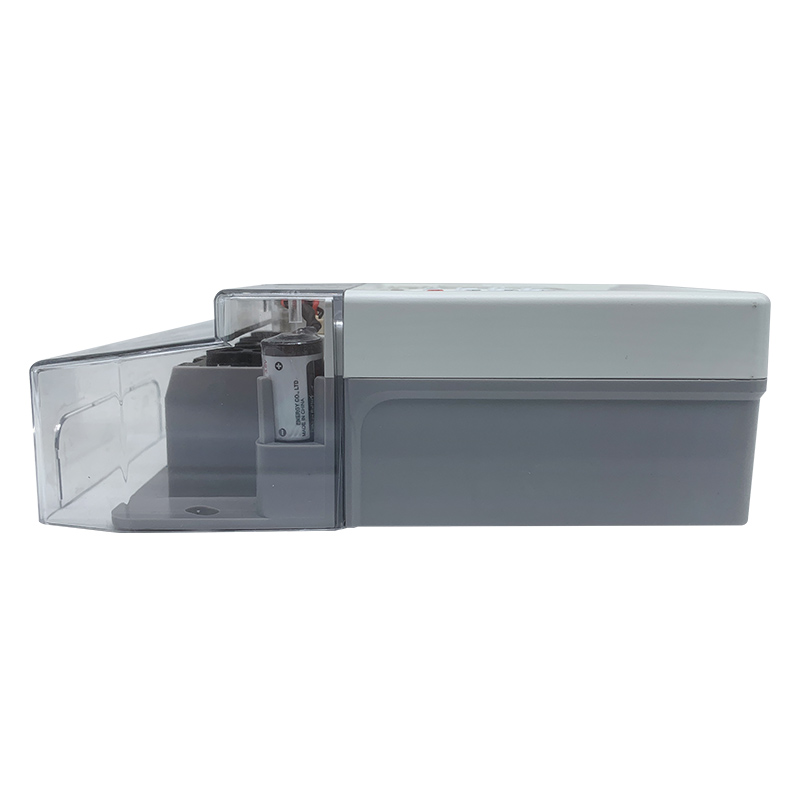

4G Smart Energy Meter STS Single Phase Prepaid Electricity Meter

EM129115

Multi-measurement: kWh, W, V, A, PF, Hz, etc.

IR and GPRS-2/3/4G Comm.

STS/Currency/Postpaid Mode Optiona

Prepaid function

Multi-Tariff

Event Log

1P2W

Inquire Now

Product Description

EM129115 is a STS single-phase suspension meter, which supports IR and GPRS-2/3/4G communication. It can measure in STS mode, currency mode and postpaid mode. And also supports reading without power, anti-tamper, tariff setting and event log etc. Widely used in residential buildings, apartments, schools and other intelligent power systems.

Specification	Voltage	230V
	Current	5(100)A
	Impulse Constant	1000imp/kWh
	LCD Display	LCD6+2
	Temp. Range	-20～70℃
	Frequency	50Hz
	Accuracy Class	Active power Class 1, reactive power Class 2
	Operating Humidity	<95%
	Power Consumption	<10VA/2W
	Degree of protection	IP51
	Reference Standards	IEC62052-11:2003, IEC62053-21:2003, IEC 62056-21,IEC62055-41:2018
	Communication	GPRS-4G(2G/3G Can be Optional)
	Module	CAT 4
	Frequency band	LTE-FDD:B1/B3/B5/B7/B8/B20/B28LTE-TDD:B38/B40/B41WCCDMA:B1/B5/B8GSM/EDGE:B3/B8
