EM619002
Multi-measurement: kWh, V, I, etc.
Measuring Current up to 2000A
Bi-directional Measurement
RS485 Communication
Multi-tariff (RTC)
Built-in Auxiliary Relay
Alarm Function
DC5~1000V
EM619002 is a 5-1000V DC energy power meter with external shunt. Measuring Current up to 2000A. It support RS485 communication- DLT645 and Modbus protocol. The main features are: DIN rail installation, compact size, beautiful appearance, built-in battery, Tariff function, RTC, overload alarm, built-in auxiliary relays. This meter is widely used in Battery Energy Storage System, PV solar bidirectional metering, AC & DC EV charging, Telecommunication Based Station, Power Generation System.

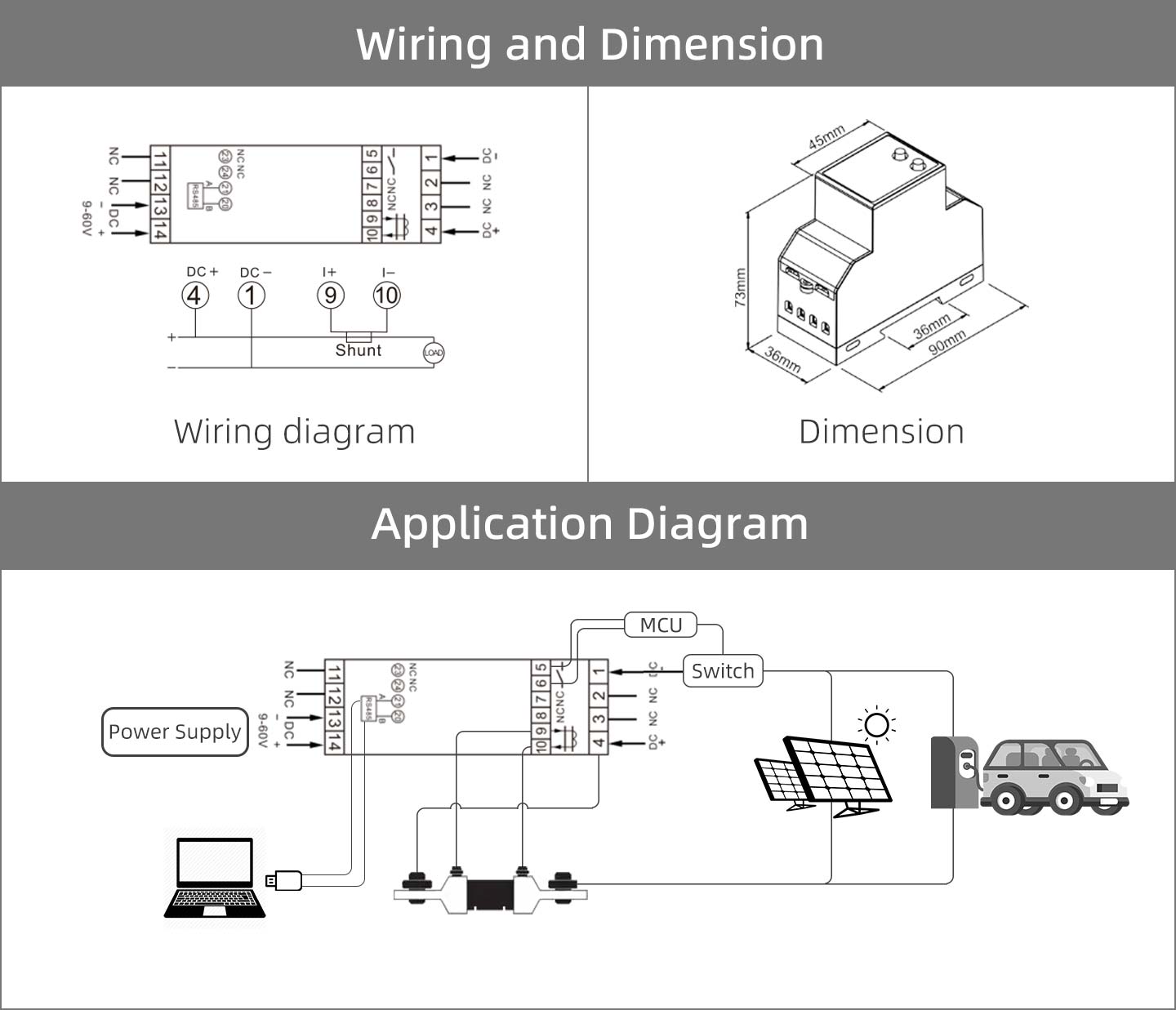

| Din Rail DC Energy Meter Series | ||||
| Models | EM613001 | EM613005 | EM619001 | EM619002 |
| Measurement Mode | Absolute Value | Bi-directional Active Measurement | ||
| External Power Supply | DC 40V~400V | DC 8V~48V | AC/DC 85~265V | DC 9~60V |
| Voltage | DC 40V~400V | DC 8V~48V | DC 5V~1000V | |
| Current | 10A~240A | Up to 2000A（Integrated Meter Signal: 75mV） | ||
| Accuracy Class | Cl.1.0 | |||
| Pulse Constant | 100imp/kwh | 1000imp/kwh | ||
| LCD Display | LCD Backlit 6+2 | |||
| Alarming | Over or Under-voltage,Over-current Alarm, Threshold Value Can Be Set | |||
| Overcurrent Disconnect | / | Single Channel Auxiliary Relay for Overcurrent Cut-off Signal Output (Need External Relay to Cut-off) | ||
| Communication | RS485 | RS485 | RS485 | |
| Communication Protocol | DLT645 Protocol | DLT645/Modbus Protocol | DLT645/Modbus Protocol | |
| Communication Speed | 9600 bps | 9600 bps | Max 115200 bps | |
| Multi-tariff | Yes | |||
| Power Consumption | ≤8VA ≤0.4W | ≤8VA ≤0.4W | ≤8VA ≤0.4W | ≤8VA ≤0.4W |
| Ambient Temperature | -25~+70℃ | -25~+70℃ | -25~+70℃ | -25~+70℃ |
| Ambient Humidity | ≤95% | ≤95% | ≤95% | ≤95% |
| Installation | Standard Din Rail | Standard Din Rail | Standard Din Rail | Standard Din Rail |
| Shunt | Built-in | Not Included, Need External Shunt for Current Sampling | ||
| Typical Application | This Series of DC Din Rail Type Energy Meters are Widely Used in Photovoltaic Power Generation, Energy Storage Battery Systems, Electric Vehicle Charging Piles, Communication Base Stations, Computer Rooms and Other fields. | |||
