MID Approved Three Phase DIN Rail Bi-direcitonal Energy Meter for EV Charging

EM519032

Multi-measurement: kWh, W, V, A, PF, Hz, etc.

Bi-directional metering

MID Approved

SO Output

Din Rail Mounted

IR Communication

3 Measurement mode

3P4W

Inquire Now Next Product

Product Description

EM519032 is a bidirectional metering meter for DIN rail mounting. It measures Voltage, Current, Active Power, Reactive Power, Apparent Power, Frequency, Power Factor, Active Energy, Reactive Energy, Forward Energy, Reverse Energy, etc. The units support Max. 80A direct connection, And passed MID approval.

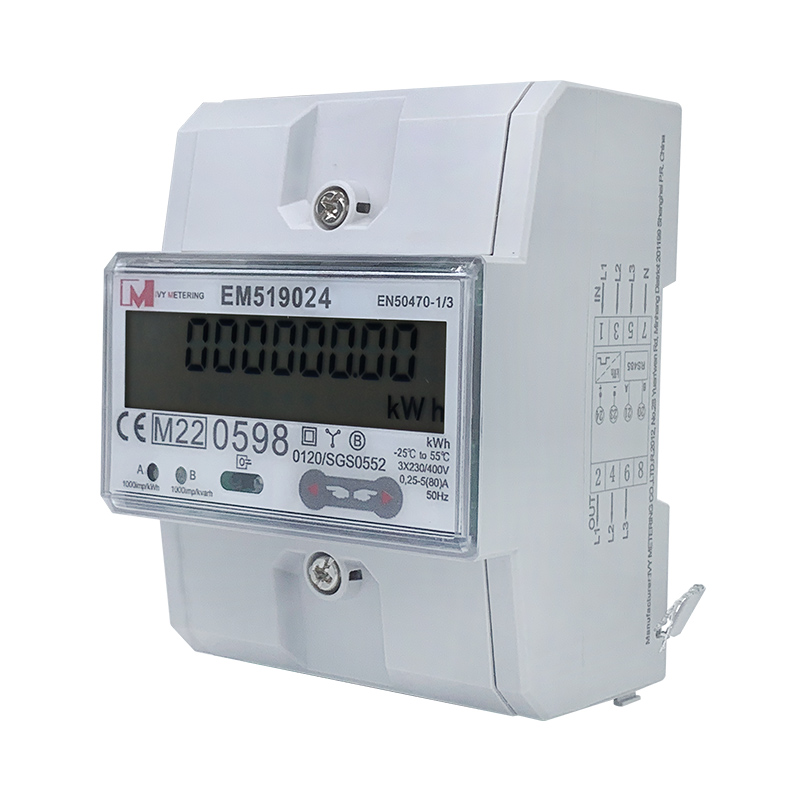

Type	EM519032	EM519033	EM519024
Electrical Parameters Measurement	Voltage, Current, Active Power, Reactive Power, Apparent Power, Frequency, Power Factor Active/Reactive Energy And Forward And Reverse Measurement (Four Quadrant Measurement)
Ref. voltage	3*230/400V
Ref. current	0.25-5(30)A, 5(32)A,5(40)A,5(45)A, 5(50)A, 5(80)A
Impulse constant	1000imp/kWh, 1000imp/kVarh
SO Output	Yes	Yes	Yes
Operation temp.	-25~+55℃	-25~+55℃	-25~+55℃
Average humidity	85%	85%	85%
Relative humidity	90%	90%	90%
Measurement Mode	Total=Forward Total=Forward+Reverse (default) Total=Forward-Reverse	Total=Forward Total=Forward+Reverse (default) Total=Forward-Reverse	Total=Forward Total=Forward+Reverse (default) Total=Forward-Reverse
Ref. frequency	50Hz	50Hz	50Hz
Accuracy class	Class B	Class B	Class B
Starting current	0.004Ib	0.004Ib	0.004Ib
Power consumption	≤ 1.5W,<10VA	≤ 1.5W,<10VA	≤ 1.5W,<10VA
Battery & Tariff	W/O Battery & Tariff	W/O Battery & Tariff	With Battery & Tariff
Communication	IR	IR&RS485 MODBUS	IR&RS485 MODBUS
Display	LCD6+2	LCD6+2	LCD6+2
Standard	EN50470-1/3	EN50470-1/3	EN50470-1/3
