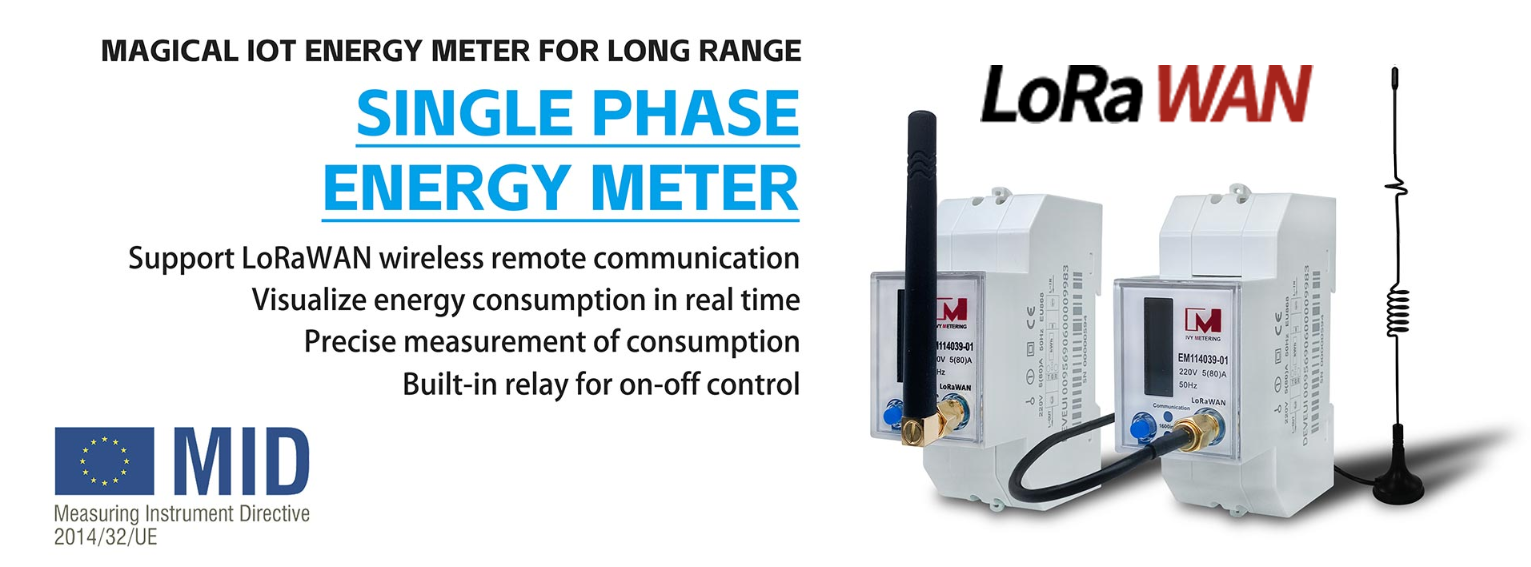

220V DIN Rail Single Phase LoRaWAN Electricity Meter with Relay

EM114039-01

Multi-measurement: kWh, W, V, A, PF, Hz, etc.

LoRaWAN Communication

MID Certificate

Built-in relay

Din Rail Mounted

LCD display

1P2W

Inquire Now Next Product

Product Description

Single Phase LoRaWAN Smart Energy Meter DIN Rail EU 868Mhz Electric Meter for IOT System

EM114039 is a single-phase smart meter, supporting LoRaWAN remote communication, built-in relay, relay on/off remote control through LoRaWAN or TTL communication, remote meter reading, widely used in smart city and Internet of Things distribution system.

Specification	Product Type	Single Phase LoRaWAN Electricity Meter
	Ref. voltage	220V
	Ref. current	0.25-5(80)A
	Impulse Constant	1600imp/kWh
	LCD Display	LCD5+1
	Operation Temp.	-20~+70℃
	Relative Humidity	<95%
	Ref. frequency	50Hz
	Accuracy Class	Cl.1
	Starting Current	0.4%/Ib(CI.1)
	Load Control	Built-in 80A latching relay
	Power Consumption	≤ 1W,<10VA
	Standard Compliant	IEC62052-11/IEC62053-21, IEC62055-41/IEC62056-21
	LoRaWAN Communication	EU868MHz
	LoRaWAN Antenna	SMA Socket
