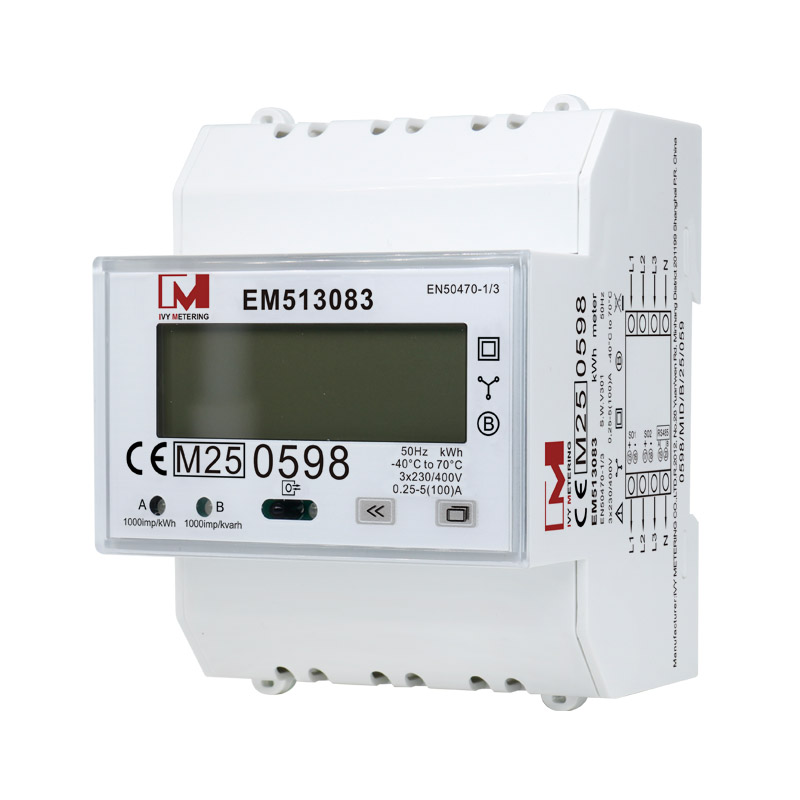

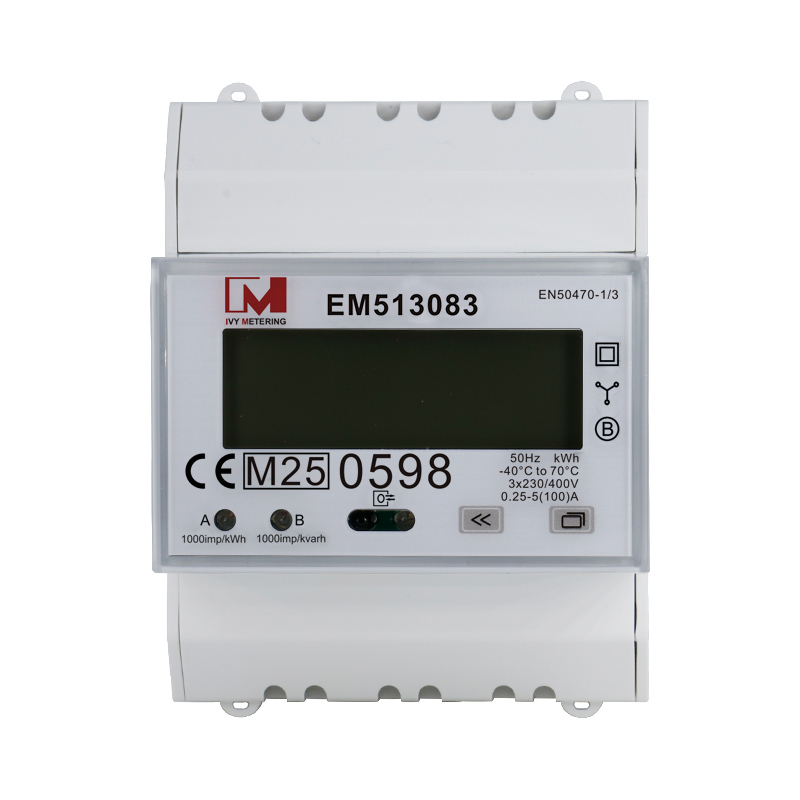

100A Three Phase Bidirectional RS485 Energy Meter

EM513083

Multi-measurement: kWh, W, V, A, PF, Hz, etc.

Bi-directional Measurement

RS485 Modbus/DLT645

MID Certificate

Backlight Display

Din Rail Mounted

SO Output

3P4W

Inquire Now Next Product

Product Description

The EM513082~EM513084 series are three-phase DIN-rail mounted electric meters designed for residential, commercial, and renewable energy applications such as EV charging stations and solar systems. With a maximum current rating of 100A and a post-payment metering mode, these meters offer comprehensive energy monitoring capabilities. Key features include real-time measurements of voltage, current, power, frequency, and power factor; cumulative energy calculations (active/reactive/kVARh); LCD backlit display with manual scrolling; and RS485 communication (select models) supporting Modbus/DLT645 protocols. They comply with EN50470-1/3 standards and operate in extreme temperatures (-40°C to 70°C).

Model	EM513084	EM513083	EM513082
Voltage	3*230(400)V
Current	5(100)A
Pulse Constant	1000imp/kWh1000imp/kvarh	1000imp/kWh1000imp/kvarh	1000imp/kWh1000imp/kvarh
Communication	IR	IR,RS485 Modbus/DLT645	IR,RS485 Modbus/DLT645
Baud Rate	N/A	9600\19200\38400\115200	9600\19200\38400\115200
SO Output	SO1 refers to the total active power (default) or active/reactive forward power (optional )The pulse constant can be set and is divisible by 96000
SO Output	SO2 refers to total reactive power (default) or active/reactive reverse power (optional) The pulse constant can be set and is divisible by 96000
Backlight	Blue	Blue	Blue
Lithium Battery	N/A	N/A	YES
Multi-Tariff	N/A	N/A	YES
Measurement model	1.Total=Forward2.Total=Reverse3.Total=Forward +Reverse (Default)4.Total=Forward-Reverse
Button	Touch Button
Button Function	Left button: Turn the page,Right button: Turn the page and set the information display
Default setting	1000imp/kWh1000imp/kvarh	1000imp/kWh1000imp/kvarh9600/NONE/8/1	1000imp/kWh1000imp/kvarh9600/NONE/8/1
Metering Mode Setting	Button	RS485 or Button	RS485 or Button
