EM513082
Multi-measurement: kWh, W, V, A, PF, Hz, etc.
Bi-directional Measurement
RS485 Modbus/DLT645
MID Certificate
Multi-Tariff
Backlight Display
Din Rail Mounted
SO Output
3P4W

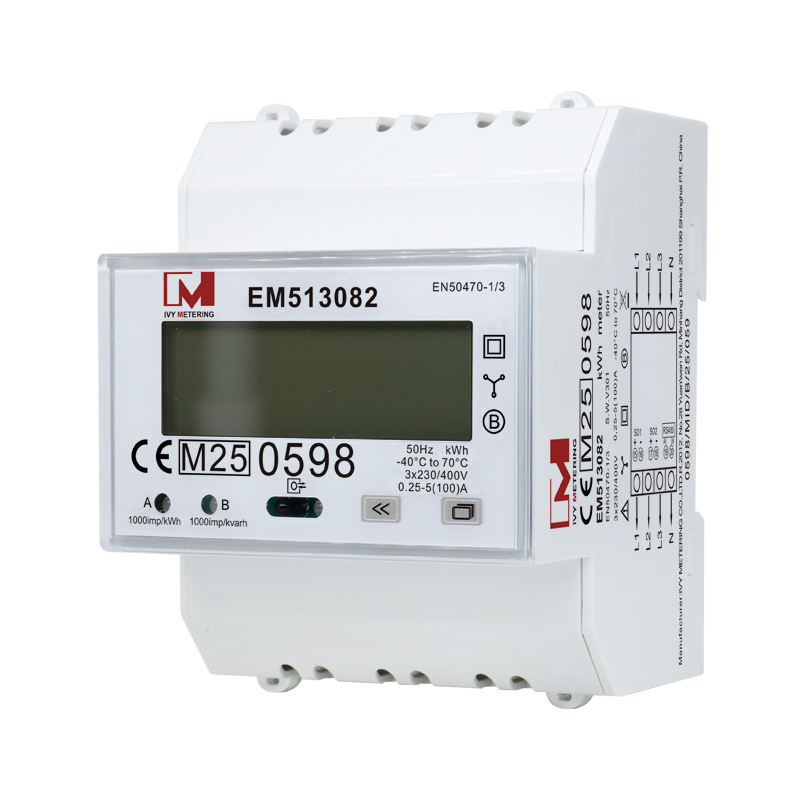

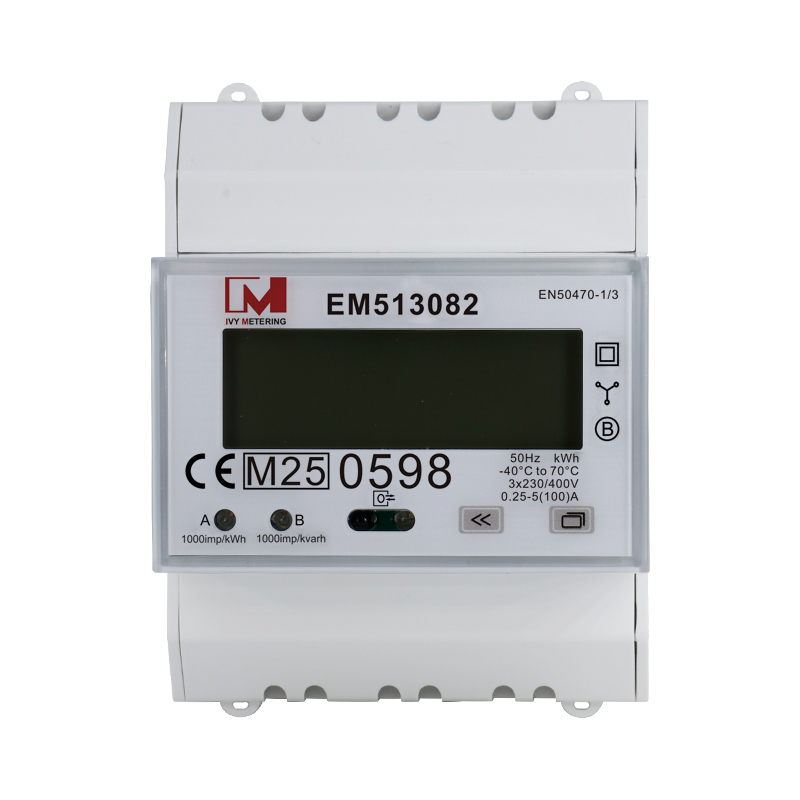

EM513082 100A three-phase RS485 Bidirectional meter, which adopts post-paid metering mode, is a multi-functional energy monitoring meter. It can support RS485 communication and is suitable for domestic and commercial distribution systems, as well as new energy metering systems, such as charging piles and solar power generation systems.
| Voltage | 3*230(400)V |
| Current | 5(100)A |
| Communication | RS485 |
| Starting Current | 0.4%Ib |
| Power Consumption | <12VA <1W |
| Accuracy | Class B |
| Frequency | 50Hz |
| Pulse output | 1000imp/kWh(LED) 1000imp/kvarh(LED) |
| Display | LCD 6+2 = 999999.99kWh |
| Operating Temperature | -40～70℃ |
| Relative Humidity | ≤75% (Non Condensing) |
| Protection Level | IP51 |
| Standard | EN50470-1/3 |
IVY METERING CO., LTD.
