EM513083
Multi-measurement: kWh, W, V, A, PF, Hz, etc.
Bi-directional Measurement
MID Certificate
Backlight Display
Din Rail Mounted
SO Output
3P4W

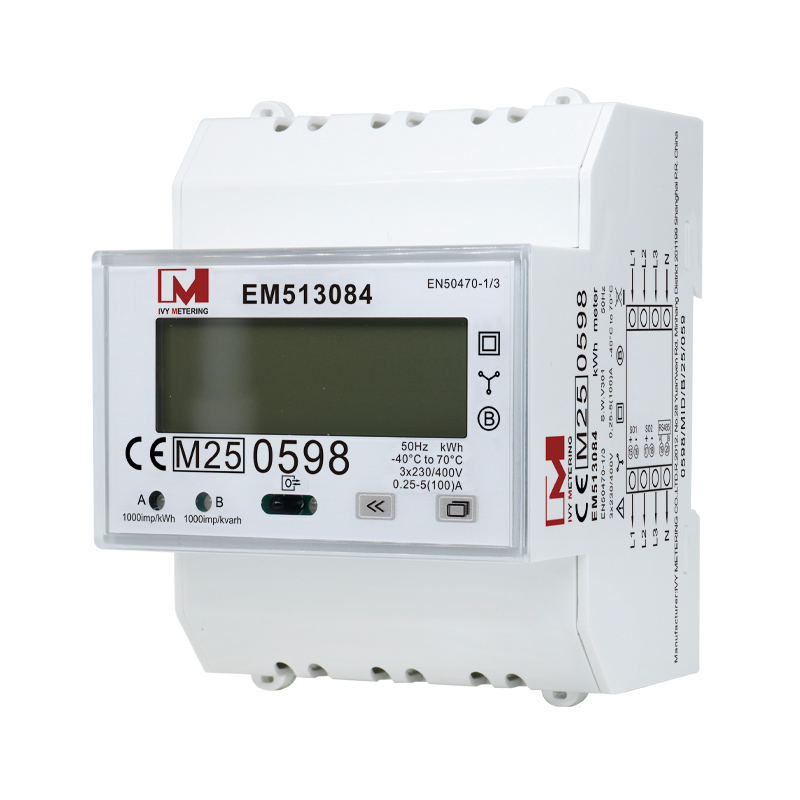

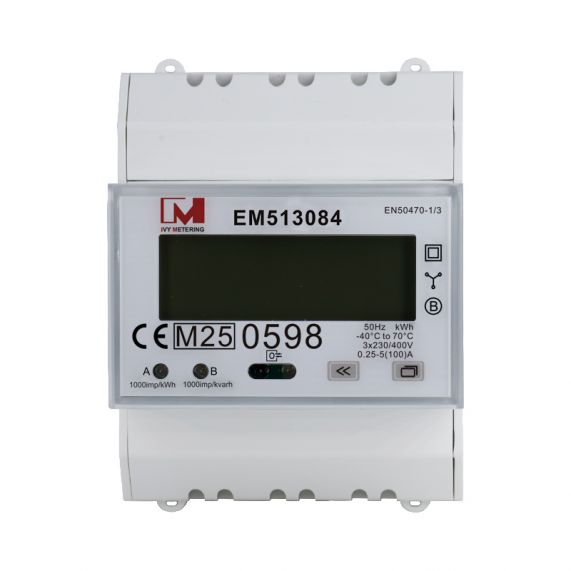

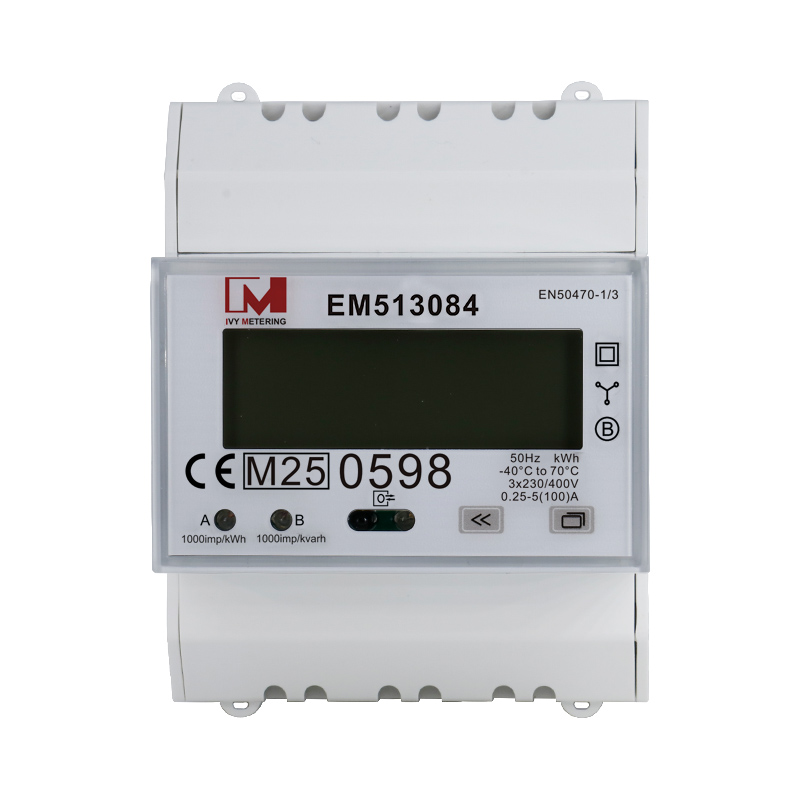

EM513084 three-phase DIN rail meter, maximum current up to 100A, support bidirectional metering, is a multi-functional energy monitoring meter. It is suitable for domestic and commercial distribution systems, as well as new energy metering systems.
| Voltage | 3*230(400)V |
| Current | 5(100)A |
| Starting Current | 0.4%Ib |
| Power Consumption | <12VA <1W |
| Accuracy | Class B |
| Frequency | 50Hz |
| Pulse output | 1000imp/kWh(LED) 1000imp/kvarh(LED) |
| Display | LCD 6+2 = 999999.99kWh |
| Operating Temperature | -40～70℃ |
| Relative Humidity | ≤75% (Non Condensing) |
| Protection Level | IP51 |
| Standard | EN50470-1/3 |
