Self-contained meter for EV Charging Station. It can measure three-phase network parameters such as voltage, current, active, reactive and apparent power, power factor, frequency and maximum demand in low voltage.

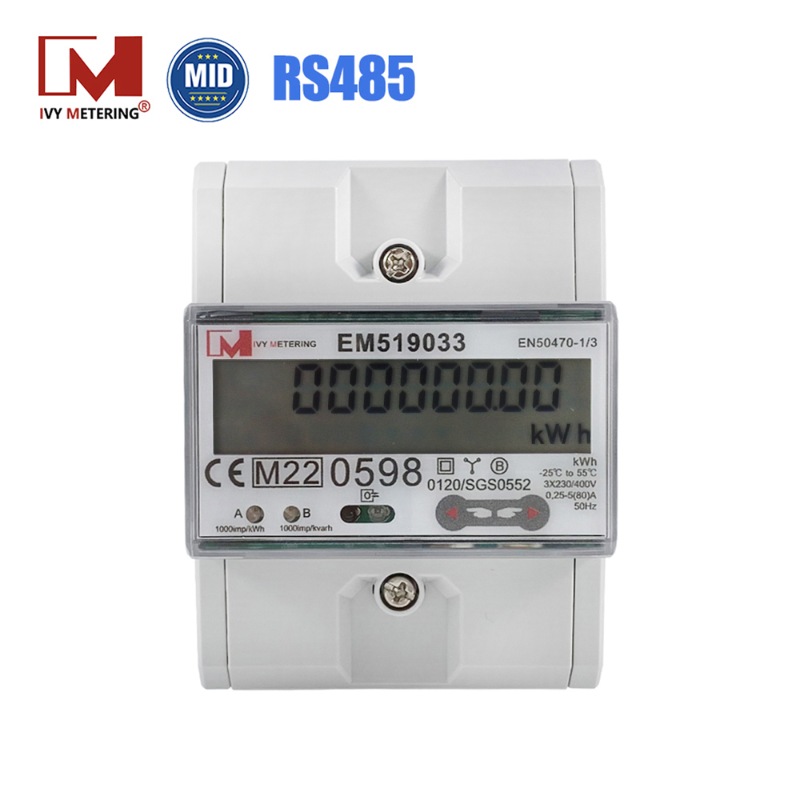

MID approved energy meters that ensure accurate measurements of your power consumption. "EM519032/33/24" series meters are designed for DIN-Rail installation, suitable for grid-connected PV solar energy metering projects and EV charging metering solutions, the meters can measure and display various important power parameters, and can be connected through the RS485 communication port Real-time reading of meter data, the meter has passed MID approval, bi-directional energy metering makes this meter an excellent choice for solar energy metering. Self-contained meter for EV Charging Station. It can measure three-phase network parameters such as voltage, current, active, reactive and apparent power, power factor, frequency and maximum demand in low voltage.
(1)0.25(30A / 32A / 40A / 45A / 50 / 80A),
(2)3 Measurement mode
(3)Active & Reactive, negative & positive Measurement
(4)IR and RS485 Communication, SO Output
(5)Accuracy Class: Class B
(6)Multi-tariff, MID Approved
(7)Bidirectional Metering
| Type | EM519032 | EM519033 | EM519024 |
| Ref. voltage | 3*230/400V | 3*230/400V | 3*230/400V |
| Ref. current | 0.25-5(30)A, 5(32)A,5(40)A,5(45)A, 5(50)A, 5(80)A | 0,25-5(30)A, 5(32)A,5(40)A,5(45)A, 5(50)A, 5(80)A | 0,25-5(30)A,5(32)A,5(40)A,5(45)A, 5(50)A,5(80)A |
| Impulse constant | 1000imp/kWh, 1000imp/kVarh | 1000imp/kWh, 1000imp/kVarh | 1000imp/kWh, 1000imp/kVarh |
| SO Output | Yes | Yes | Yes |
| Operation temp. | -20~+70℃ | -20~+70℃ | -20~+70℃ |
| Average humidity | 85% | 85% | 85% |
| Relative humidity | 90% | 90% | 90% |
| Measurement Mode | Total=Forward Total=Forward+Reverse (default) Total=Forward-Reverse | Total=Forward Total=Forward+Reverse (default) Total=Forward-Reverse | Total=Forward Total=Forward+Reverse (default) Total=Forward-Reverse |
| Ref. frequency | 50Hz | 50Hz | 50Hz |
| Accuracy class | Class B | Class B | Class B |
| Starting current | 0.004Ib | 0.004Ib | 0.004Ib |
| Power consumption | ≤ 1.5W,<10VA | ≤ 1.5W,<10VA | ≤ 1.5W,<10VA |
| Battery & Tariff | W/O Battery & Tariff | W/O Battery & Tariff | With Battery & Tariff |
| Communication | IR | IR&RS485 MODBUS | IR&RS485 MODBUS |
| Display | LCD6+2 | LCD6+2 | LCD6+2 |
| Standard | EN62056 IEC1107 EN50470-1/3 | EN62056 IEC1107 EN50470-1/3 | EN62056 IEC1107 EN50470-1/3 |
