AEC-21Y-G1
16~32A, Mode 3
230V±10% (1-phase); 3*230/400V±15% (3-phase)
Max power of 21kW
RS485,RFID,Bluetooth and 4G Remote Comm.
Gun Adapt Type 1 SAE J1772, Type 2 IEC 62196-2

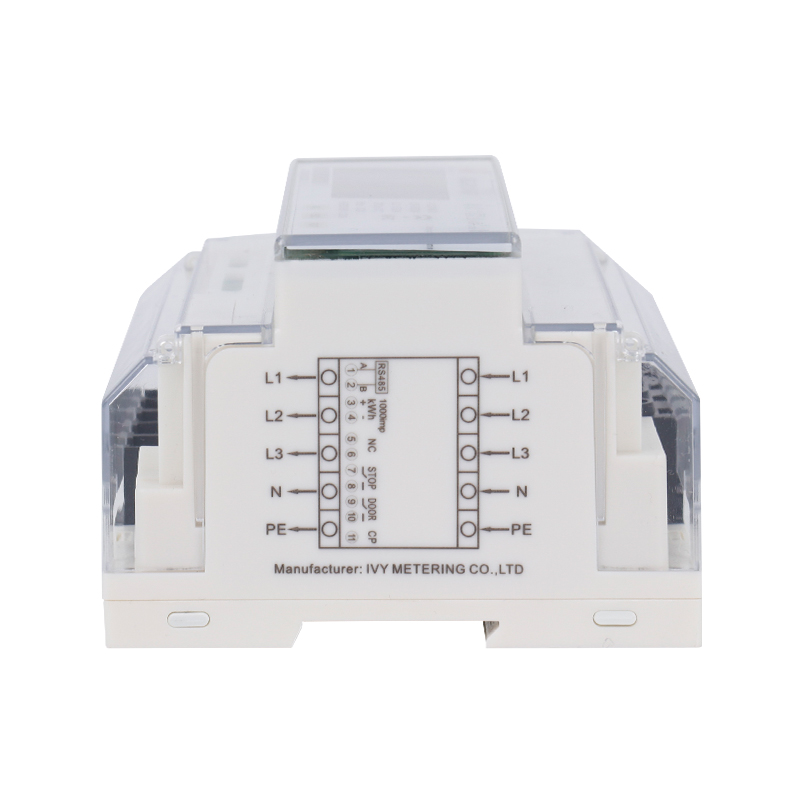

AEC-21Y-G1 charging module has a din rail-type installation method with a small volume. It features three-phase charging (also supports single-phase), a max current of 32A, and a max power of 21kW. It uses standard interfaces and protocols, with RS485 local and 4G remote communication. Supports plug-and-play, local/remote authorisation, and prepayment.
All-in-One Charging Solution: It's designed as a core component for AC electric vehicle chargers, integrating charging, metering, and leakage protection.
Efficient Charging: Supports three-phase charging with a maximum current of 32A and power up to 21kW. It allows flexible switching between single and three-phase modes, adapting to different power environments.
Smart Communication & Management: Offers RS485 for local communication and 4G for remote monitoring and management. Supports local/batch authorization modes, catering to public or private management needs, and allows for custom APP platform creation.
Versatile Payment Options: Supports card payments, mobile payments, and pre-payment options.
Compact Design and Flexible Expansion: It has a small size with a rail-type installation.
Wide Adaptability: Suitable for home garages, commercial parking lots, community charging stations, and long-term rental operations. Compatible with various new energy electric vehicles.
Safety Features: Includes 14 safety protection functions.
Standard
EN IEC 61851-1:2019(Safety Standard)
IEC 61851-21-2:2018 (CE-EMC)
EN IEC 61851-1:2019 (CE-LVD)
EN 50470-3/EN IEC 62052-11(MID Measurement standard)
| Charging voltage | 230V±10%（1-phase）；3*230/400V±15%（3-phase） |
| Charging power | Max 21KW |
| Metrological | Pulse constant：3200imp/kWh |
| Frequency：50/60Hz | |
| Accurate ：Class 1.0 | |
| Communication method | 4G,Bluetooth 4.0-5.0（ 2.4 GHz） |
| RFID（swipe card to activate use）RS485（connector） | |
| Communication protocols | PWM(EN/IEC61851) |
| Temperature | Operating -25～55℃ Storage -40～80℃ |
| Humidity level | Avg≤75%， Max≤95% |
| Waterproof/mechanical rating | This rating is determined by the charging post enclosure, itself IP30 |
| Safety protection function | Emergency stop protection, Leakage protection, Lightning protection, Overheating protection, Grounding protection, Short circuit protection, Overvoltage, under-voltage protection, surge protection, stop charging when battery full |
| Dot matrix LCD display | Charging voltage, charging current, charging energy, charging duration |
