EM114023-01
Multi-measurement: kWh, W, V, A, PF, Hz, etc.
WIFI Communication
Prepaid function
Built-in Relay
LCD Display
1P2W

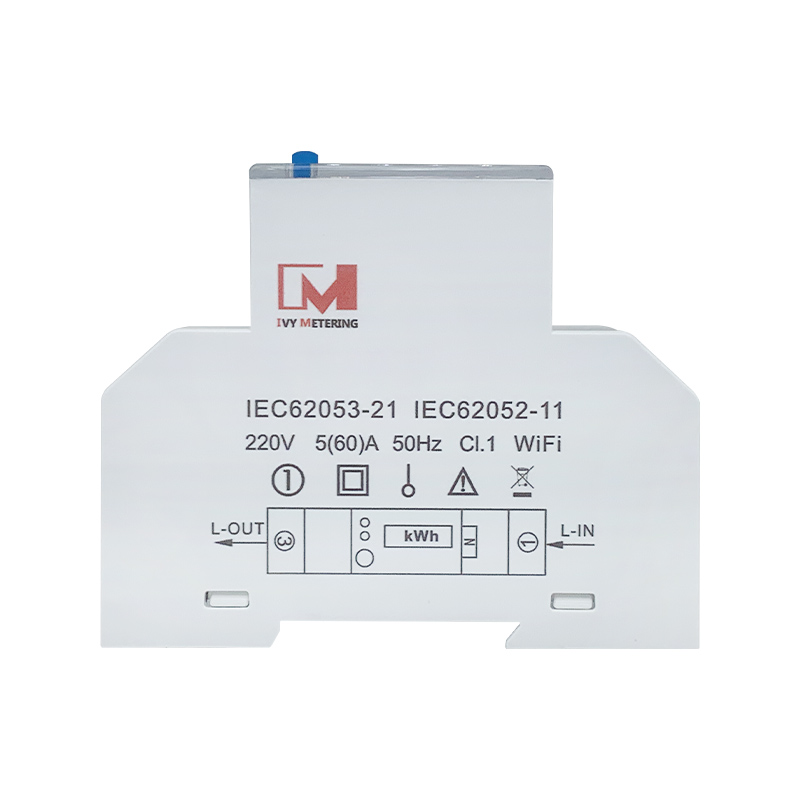

EM114023-01 is a WiFi wireless Smart energy meter, which is applicable to measuring the power consumption of a home or factory. Users can connect intelligent devices with energy meter through WIFI, read data and control remotely through intelligent devices, visualize LCD display, and measure voltage, current, total power and power in real time. You can clearly understand the power consumption of connected devices and easily manage various devices.
| Specification | Voltage | 220V |
| Current | 5(60)A | |
| Impulse Constant | 1600imp/kWh | |
| LCD Display | LCD5+1 | |
| Temp. Range | -20~70℃ | |
| Annual Average Humidity | 75% | |
| Maximum Humidity | 95% | |
| Frequency | 50Hz | |
| Accuracy Class | Class 1 | |
| Starting Current | 0.4%Ib | |
| Power Consumption | <2W / <10VA @ Un | |
| Network instructions | Green light indicator always on：normal network；Green light Indicator one second on & one second off：abnormal network | |
| Reference Standard | GB/T17215.321,IEC62055-41 |
